Label Printers

Afinia L-901 Plus

In Brief

L901 allows you to produce vibrant color prints with high resolution. Large print volumes are now cheaper, with five 250 ml high-capacity CMYKK ink cartridges offering an ultra-low cost per label.

is it right for me?

L901 is ideal for printing high-resolution color labels in large volumes. The Plus model offers greater resistance to water and humidity, making it perfect for specific applications. Thanks to its advanced technology, the L901 offers an ultra-ba cost per label

Subscribe to the Newsletter

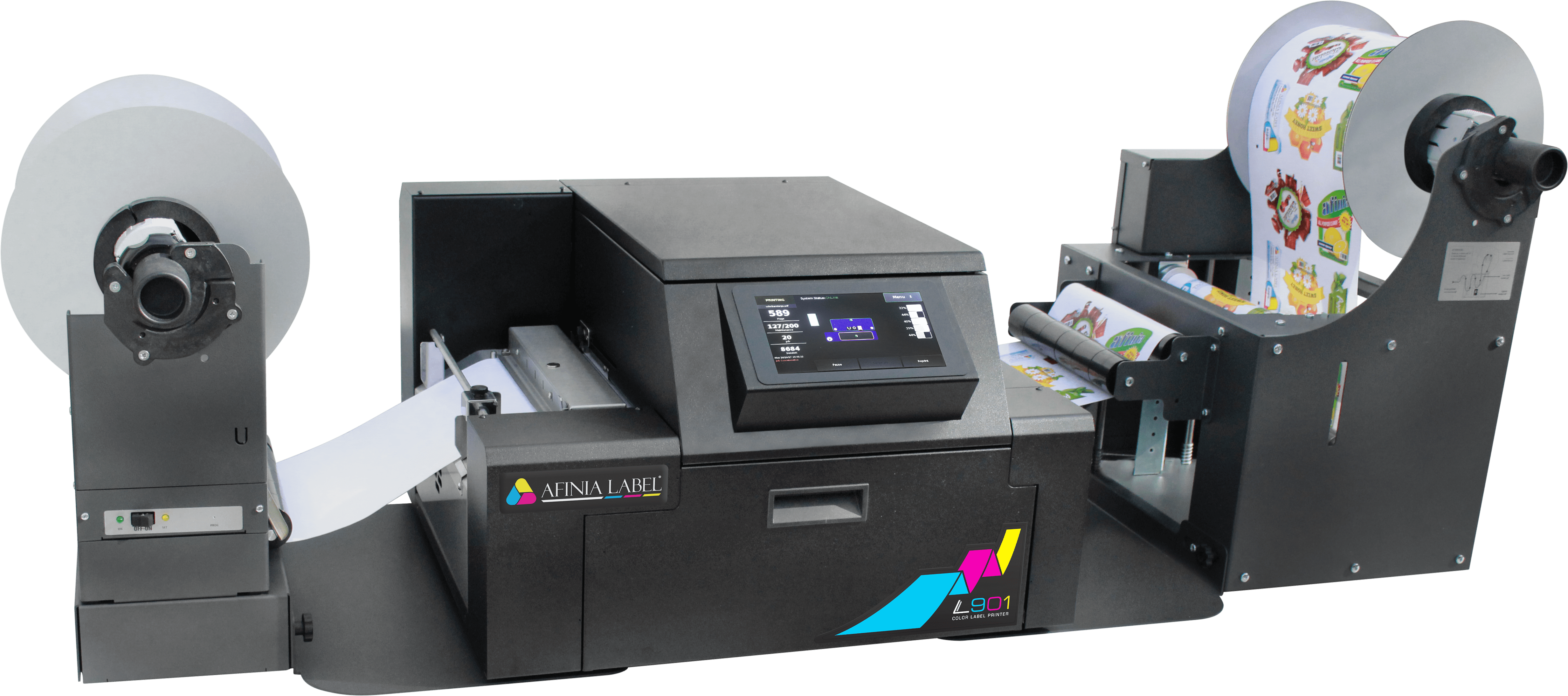

New Afinia L-901 Plus inkjet reel printer

Afinia L901: the label printer you need

Powerful in both roll-to-roll and inline applications

The L901 combines industrial design, exceptional image quality and fast production speeds with new print head servicing and maintenance capability 'on the move'. This makes the L901 perfect for long-roll printing jobs or for in-line integration with label finishers, applicators, dispensers, and more.

The L901 allows you to produce vibrant color prints at high resolution. Large print volumes are now cheaper, with five 250 ml high-capacity CMYKK ink cartridges offering an ultra-low cost per label.

Integrates directly with label finishers, applicators, dispensers and more

The L901 integrates directly with label finishers, applicators, dispensers, and more, greatly simplifying the workflow. This means that labels can be printed and applied continuously, without having to be moved from one work area to another.

L901 Plus with Watershield™ water resistant inks

The Plus model of the L901 offers greater resistance to water and humidity. Labels printed with Watershield™ inks are significantly more resistant to the effects of prolonged exposure to moisture than inkjet labels based on conventional dyes. This makes the L901 Plus perfect for applications such as chilled beverages, food, chemicals or pharmaceuticals.

This new technology also produces deeper blacks, uses inks from more responsible sources and helps extend the life of the printhead.

In summary, the L901 is ideal for printing high-resolution color labels in large volumes. The Plus model offers greater resistance to water and humidity, making it perfect for specific applications. Thanks to its advanced technology, the L901 offers an ultra-low cost per label and greater printing efficiency.

Technical characteristics

Categoria Specifiche
Metodo di Stampa Tecnologia della Testina di Stampa Memjet Waterfall® a 11 Circuiti Integrati (IC) – 70.400 ugelli
Inchiostri A base acqua, CMYKK da 250 mL ciascuno (1,25 L totali)
Risoluzione di Stampa 1600 x 1600 dpi – 1600 x 800 dpi
Velocità di Stampa 6 pollici (152 mm) al secondo – 12 pollici (305 mm) al secondo
Larghezza di Stampa 8.5 pollici (216 mm)
Taglierina/Rifilatore Alimentata
Formato Supporto
  • Larghezza: 2"–9" (50.8 mm–229 mm)
  • Lunghezza: 2"–48" (50.8 mm–1220 mm)
  • Spessore: Minimo 0.005" (0.13 mm), Massimo 0.01" (0.3 mm, incluso il liner)
Diametro Mandrino Richiede un nucleo di cartone da 3" (76.2 mm)
Unwind/Rewind 10" (250 mm) diametro esterno *
Sensori di Supporto Gap (mobile), continuo, marker neri
Spazio di Taglio Die-cut Minimo 0.125" (3.0 mm), Massimo 0.3" (8.0 mm)
Marker Neri Larghezza 3 mm, lunghezza 25.4 mm a sinistra
Materiali Compatibile con una vasta gamma di carte, poliestere, polipropilene e etichette in vinile
Interfacce USB 2.0, TCP/IP (Configurazione manuale IP o DHCP), GPIO disponibile per il controllo del dispositivo esterno
Sistema Operativo Windows 7, 8 e 10 (32 e 64 bit)
Font Barcode Barcode 1D almeno di grado B (Code39) con larghezza barre di 10 mils
Stampa Codice 2D Barcode 2D almeno di grado B (PDF417) con dimensioni celle di 10 mils
Temperatura di Funzionamento 15°–35° C (59°–95°F) a RH 20–80%
Dimensioni Totali 22.5" (572 mm) L, 20.5" (521 mm) P, 14" (356 mm) A **
Peso 85 lb (38.5 kg)
Tensione Nominale AC 110V – 220V, rilevamento automatico

Frequently Asked Questions

How is a professional label printer different from home printers?

Professional label printers are designed for intensive, continuous use, while home printers are designed for occasional use. Professional label printers are able to produce a larger quantity of labels in a shorter time and are able to print on a wide range of materials. In addition, professional label printers come with advanced features, such as automatic two-sided printing and high-resolution color printing.

What characteristics should a reel label laser printer have to be considered high-quality?

To be considered high-quality, a reel label laser printer should have a number of characteristics. First, it should be able to print on a wide range of materials, including clear, opaque, and metallized materials. Second, it should be able to produce high-quality images in color and black and white. Finally, it should be equipped with advanced features, such as automatic two-sided printing and high-resolution color printing.

How can I evaluate the print quality of a label printer?

To evaluate the print quality of a label printer, you can examine the sharpness of images and texts, the accuracy of the colors, and the quality of the material used. In addition, it is possible to examine the print speed and the lifespan of the labels produced.

What are the main criteria for choosing a label printer that fits the needs of a small business?

The main criteria for choosing a label printer that suits the needs of a small business include printing capacity, print speed, print quality, compatibility with different materials, ease of use, and availability of technical support.

What are the most common connectivity options for professional-grade label printers?

The most common connectivity options for professional-grade label printers include USB connection, Ethernet connection, and wireless connection. In addition, some professional-grade label printers are equipped with advanced features, such as the NFC connection and the Bluetooth connection.
