Laser cutting and engraving solutions

Widlaser C700

In Brief

Thanks to its compactness, robustness and precision, the Widlaser C700 allows for optimum performance in small spaces while cutting and engraving numerous types of media.

is it right for me?

Are you looking for a stand that allows you to make your gadgets unique without affecting your space? The Widlaser C700 is the answer to your needs! Thanks to its compactness, robustness and precision, it allows you to work optimally without taking up too much space.

Subscribe to the Newsletter

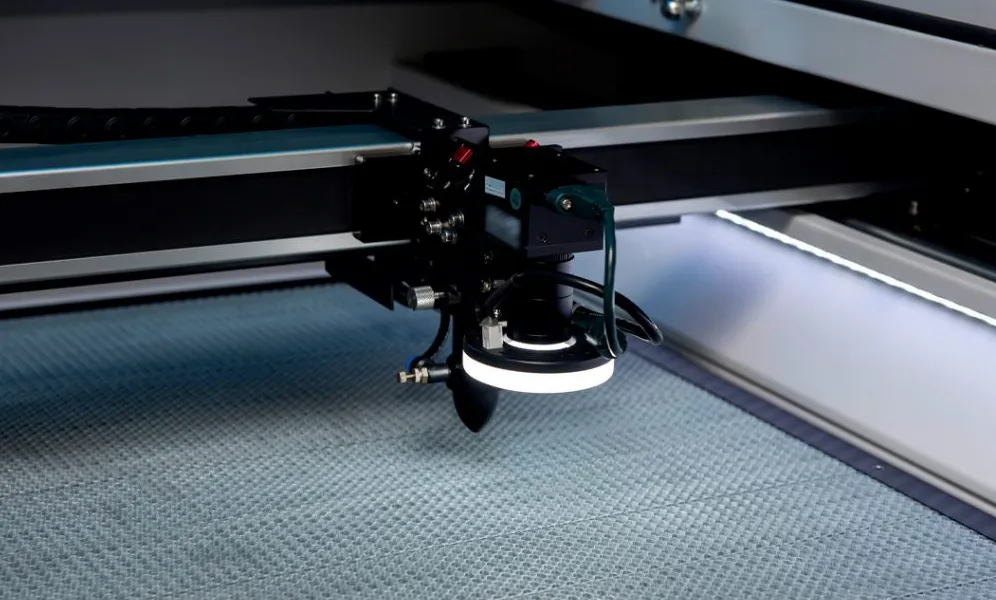

Widlaser C700 the compact infrared laser for cutting and engraving

Smaller in size than its big sister the S900, the Widlaser C700 is robust, fast, reliable, and precise in cutting and engraving materials, allowing optimal results.

‍

Its strong point? The compact double-frame design

This design allows the Widlaser C700 to operate optimally without additional space, making it the ideal solution for those with limited space. It is also a truly complete machine in every respect, as it is equipped with special dust- and smoke-proof linear modules that enable it to maintain high working performance.

‍

[row]
[row]
SPECIFICS DETAILS
WORKING AREA up to 1000 x 700 x 200 mm
LASER PERFORMANCES CO2 Laser Tube from 90W to 100W
COOLING SYSTEM automatc cooling system
SMOKE EXTRACTION icluded
HIGH PRESSURE REGULATORS Double compressed air control system
MEDIA MANAGEMENT Positioning auxiliary pointer
AUTOFOCUS Automatic focus height adjustment
TYPE OF GUIDES Sealed linear guides
HEIGHT ADJISTABLE TABLE up to 200 mm
TYPE OF BLADES Removable blades
INTERNAL TABLE LAYOUT Honeycomb table
OTHER STANDARD FEATURES Objects/waste collector drawer
MINIMUM FONT SIZE 2 x 2 mm
MAXIMUM SPEED 1000 mm/sec
SOFTWARE RDWorks V8
FILE Ai, Dst, Plt, Bmp, Dxf
CONNECTIVITY USB and network
DIMENSIONI (WxLxH) 1590 x 1320 x 1120 MM
WEIGHT 420 kg
POWER SUPPLY CA 240 V 50/60 HZ
TIPO LASER CO2
OPTIONAL CONSUMABLES
SPARE PART CO2 Laser Tube from 100W to 130W
LASER PARTS WITH LOWER WATTAGE Laser RF CO2 da 30 W o 60 W
LENS SIZE 2 and 4 inch lenses
ROTARY Adapters for cylindrical objects
ODOUR CONTROL Air purifier
RECOGNITION OF CROSSHAIRS FOR CUTTING OR OBJECTS FOR CUTTING CCD camera with a full working area
